Canvas Surfaces: An In-Engine Alternative to Grease Pencil for Hand-Drawn 3D Levels

Cuphead's animation was painted frame by frame in real ink and watercolor, run through traditional cel-animation techniques, before anything touched a computer. Okami built an entire mechanic, the Celestial Brush, around drawing directly onto the world with ink. Dragon's Lair was, famously, just Don Bluth's animation played back on a laserdisc with a very impatient input system. None of those pipelines look anything like a modern engine's asset import step, and that's kind of the point - the hand-drawn look usually comes from a process that never went through a 3D pipeline at all.

Blender's Grease Pencil is the closest thing to a bridge: it lets you draw strokes directly in 3D space, on movable, curvable surfaces, inside the same tool you'd use to build the rest of a scene. This post covers Canvas Surfaces, Entropy's own version of that idea - anchored, movable, drawable quads you paint on with a real pressure-sensitive stylus, positioned and organized like any other object in a running 3D scene, with no export step between drawing something and it being the level. The difference is that Canvas Surfaces offers a superior UX for this specific task (and won't crash on you).

What we're building

Spawn a flat canvas surface anywhere in 3D space, at a chosen size, and freely translate/rotate it.
Draw on it with a pressure/tilt-aware stylus (reusing the brush engine from the stylus-drawing post), or a mouse fallback.
Move a surface after drawing on it - the strokes stay exactly where they were drawn, since they live in the surface's own texture space, not world space.
Surfaces snap together at the edges when moved close to each other.
A layers-style panel lists every surface, with select/hide/show/delete.
A free camera, orbiting on right-click-drag rather than shift+left-drag, so a stylus hand never has to leave the tablet to hold a modifier key.
All of it is already the running scene. There's nothing to bake, export, or reimport.

New demo addon: examples/studio-bundle/src/apps/canvas_surface_addon.ts, cargo run --bin example -- canvas-surface-demo.

The architecture: a 3D Sprite, not a new renderer

Every surface is a single flat quad - four vertices, two triangles, the exact shape game2d's Sprite already uses for 2D, generalized from an x/y/rotation to a real 3D position plus yaw/pitch/roll:

const CORNERS: Array<[number, number, number, number]> = [
    [-1, 1, 0, 0],  // top-left
    [1, 1, 1, 0],   // top-right
    [1, -1, 1, 1],  // bottom-right
    [-1, -1, 0, 1], // bottom-left
];
const QUAD_INDICES = [0, 2, 1, 0, 3, 2];

function worldCorner(s: Surface, lx: number, ly: number): Vec3 {
    const local: Vec3 = [lx * s.halfW, ly * s.halfH, 0];
    return addV(localToWorldDir(local, s.yaw, s.pitch, s.roll), s.position);
}

Entropy.Model.createMesh builds it once; moving or rotating it recomputes all four world-space corners and pushes them with Entropy.Mesh.updateVertices. That's not a shortcut - per game2d/sprite.ts's own doc comment, a plain createMesh mesh has no transform of its own to update, only vertex positions. Rotation is three small matrices, composed and inverted the ordinary way:

function localToWorldDir(v: Vec3, yaw: number, pitch: number, roll: number): Vec3 {
    return rotY(rotX(rotZ(v, roll), pitch), yaw);
}
function worldToLocalDir(v: Vec3, yaw: number, pitch: number, roll: number): Vec3 {
    return rotZ(rotX(rotY(v, -yaw), -pitch), -roll);
}

Each surface also owns a private, CPU-painted RGBA texture, sampled by a small unlit pipeline - the same "dynamic texture on a textured quad" shape media_player_addon.ts already proved for video frames. This choice is what makes moving a drawn-on surface trivial: the strokes are baked into a texture with a fixed 0..1 UV mapping, not into world-space geometry, so translating or rotating the quad carries the drawing along for free. It's also what makes edge snapping and resizing cheap - both are pure vertex-position operations that never touch the texture at all.

Painting: a ray-plane intersection, not a raycast op

Turning a screen-space stylus position into a pixel inside a surface's own texture means finding where the ray hits the surface, then converting that hit into local UV space:

function raycastSurfaces(screenX: number, screenY: number): SurfaceHit | null {
    const ray = Entropy.Camera.screenToWorldRay(screenX, screenY);
    let best: SurfaceHit | null = null;
    for (const s of surfaces) {
        if (!s.visible) continue;
        const normal = localToWorldDir([0, 0, 1], s.yaw, s.pitch, s.roll);
        const denom = dotV(ray.direction, normal);
        if (Math.abs(denom) < 1e-6) continue;
        const t = dotV(subV(s.position, ray.origin), normal) / denom;
        if (t <= 0) continue;
        if (best && t >= best.t) continue;

        const hitWorld = addV(ray.origin, [ray.direction[0] * t, ray.direction[1] * t, ray.direction[2] * t]);
        const local = worldToLocalDir(subV(hitWorld, s.position), s.yaw, s.pitch, s.roll);
        const u = local[0] / s.halfW, v = local[1] / s.halfH;
        if (u < -1 || u > 1 || v < -1 || v > 1) continue;
        best = { surface: s, px: ((u + 1) / 2) * CANVAS_RES, py: ((1 - v) / 2) * CANVAS_RES, t };
    }
    return best;
}

This is a hand-rolled ray-plane test, the same shape as the FFT water ripples post's raycastToOceanPlane/worldToOceanUV, and it's deliberate rather than a gap. addon.d.ts declares Entropy.Selection.raycast(screenX, screenY), but its Rust side, op_selection_raycast, doesn't exist yet - addon_setup.js's own implementation of it is a stub that always returns null. Confirmed by reading it before relying on it, not discovered by it silently failing at runtime.

Once a hit resolves to a pixel, the actual painting is the stylus-drawing post's brush engine, generalized to write into whichever surface's own canvas buffer a stroke lands on instead of one global one - same elliptical stamp function, same pressure/tilt-driven radius and elongation, same four brushes.

Editing a surface: gizmo, sliders, and snapping, all one code path

Position can be dragged with Entropy.Gizmo's translate handles or set with X/Y/Z sliders - both funnel through the same function, which is also where edge snapping happens:

function setSurfacePosition(s: Surface, candidate: Vec3, snap: boolean): void {
    s.position = snap ? snapPosition(s, candidate) : candidate;
    pushSurfaceTransform(s);
    if (activeGizmoId && activeSurfaceId === s.id) Entropy.Gizmo.updatePosition(activeGizmoId, s.position);
}

snapPosition compares the moving surface's world-space AABB (its four corners' min/max, since rotation isn't changing mid-drag) against every other surface's AABB, one axis at a time, and pulls the candidate onto the nearest edge or center alignment within 0.2 world units:

function snapPosition(s: Surface, candidate: Vec3): Vec3 {
    const current = surfaceAABB(s);
    const others = surfaces.filter(o => o !== s).map(surfaceAABB);
    const snapped: Vec3 = [...candidate];
    for (let axis = 0; axis < 3; axis++) {
        const shift = candidate[axis] - s.position[axis];
        const candMin = current.min[axis] + shift, candMax = current.max[axis] + shift;
        const candCenter = (candMin + candMax) / 2;
        let bestDelta = 0, bestDist = SNAP_DISTANCE;
        for (const o of others) {
            const oMin = o.min[axis], oMax = o.max[axis], oCenter = (oMin + oMax) / 2;
            for (const delta of [oMin - candMax, oMax - candMin, oCenter - candCenter]) {
                if (Math.abs(delta) < bestDist) { bestDist = Math.abs(delta); bestDelta = delta; }
            }
        }
        snapped[axis] = candidate[axis] + bestDelta;
    }
    return snapped;
}

This is an AABB snap, not a true rotated-edge snap - exact for the common case (tiling flat, axis-aligned surfaces into a wall or floor) and approximate once a surface is tilted. Worth being explicit about, not worth solving this pass.

Hiding a surface (the layers panel's Hide/Show) has no dedicated engine op to lean on either - a plain createMesh mesh has no visibility flag - so it clears and, on Show, recreates the mesh from the surface's current geometry and texture binding:

function setSurfaceVisible(s: Surface, visible: boolean): void {
    if (s.visible === visible) return;
    s.visible = visible;
    if (visible) createSurfaceMesh(s);
    else Entropy.Model.clearMesh(s.meshId);
}

Right-click to orbit

Entropy.Controls.enable already exists for orbit/pan camera schemes; the default trigger is shift+left-drag. That's an awkward chord to hold with a stylus hand busy on the tablet, so this addon asks for a plain right-drag instead:

Entropy.Controls.enable("orbit", { target: [0, 1.2, 0], trigger: "always", button: 1 });

trigger: "always" drops the modifier-key requirement, button: 1 is the right mouse button. Left-drag stays free for drawing and gizmo dragging without any coordination between the two - they're already on different buttons.

Evidence

Same machine as recent Entropy posts: 12th Gen Intel Core i5-12500, Windows 11 Pro 10.0.26200. rustc 1.94.1, cargo 1.94.1, deno 2.6.7.

cd examples/studio-bundle && npm run build-canvas-surfaces   # deno bundle -> dist/canvas_surfaces.js
cargo build --bin example
cargo run --bin example -- canvas-surface-demo

cargo build --bin example clean. npm run build-canvas-surfaces (deno bundle) clean. tsc --noEmit reports no new errors in canvas_surface_addon.ts.

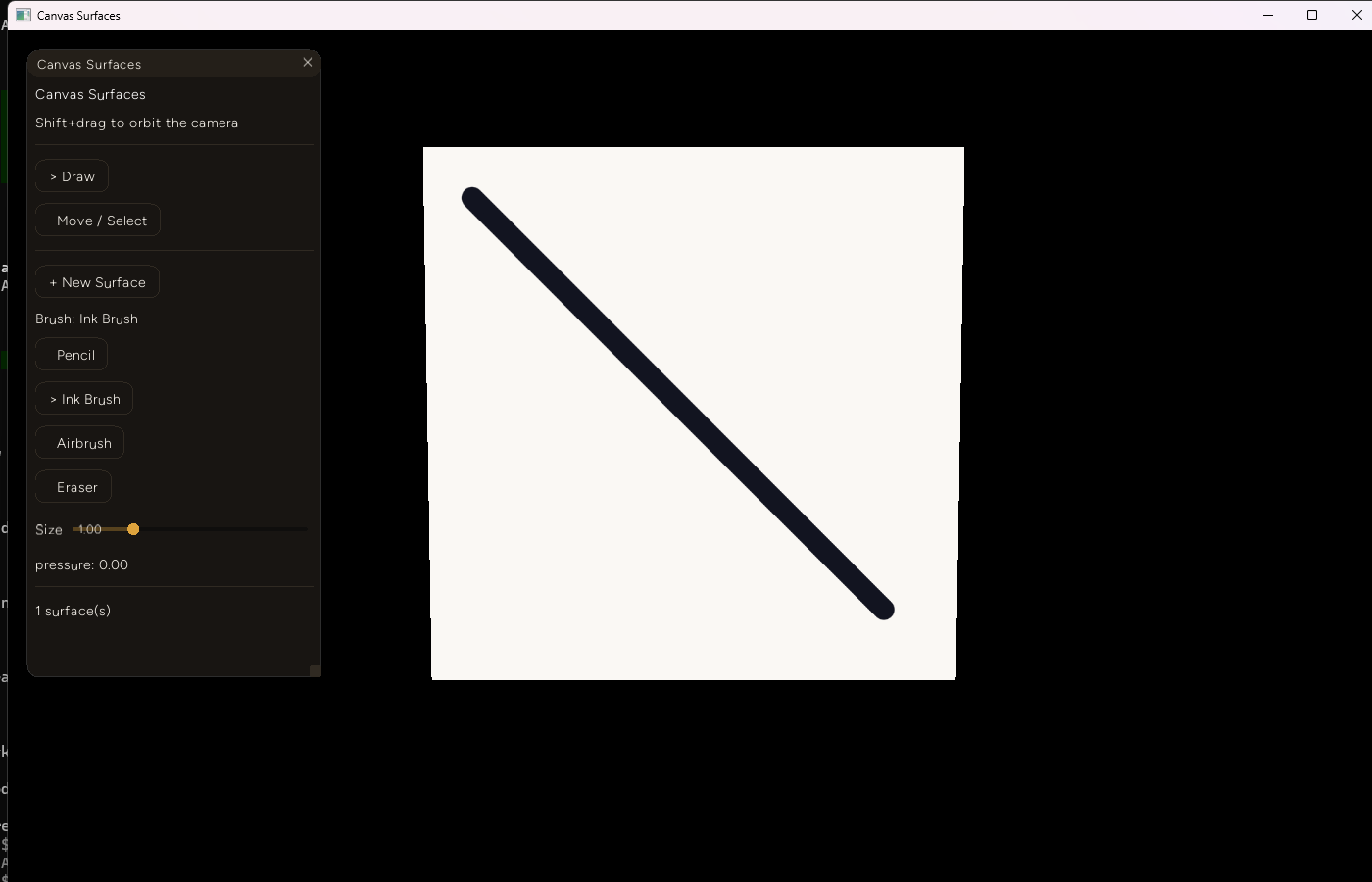

A real diagonal ink stroke, drawn with the mouse fallback path on a freshly spawned surface:

A dark diagonal ink stroke drawn across an off-white square canvas surface floating in a black 3D viewport, with the Canvas Surfaces tool panel on the left

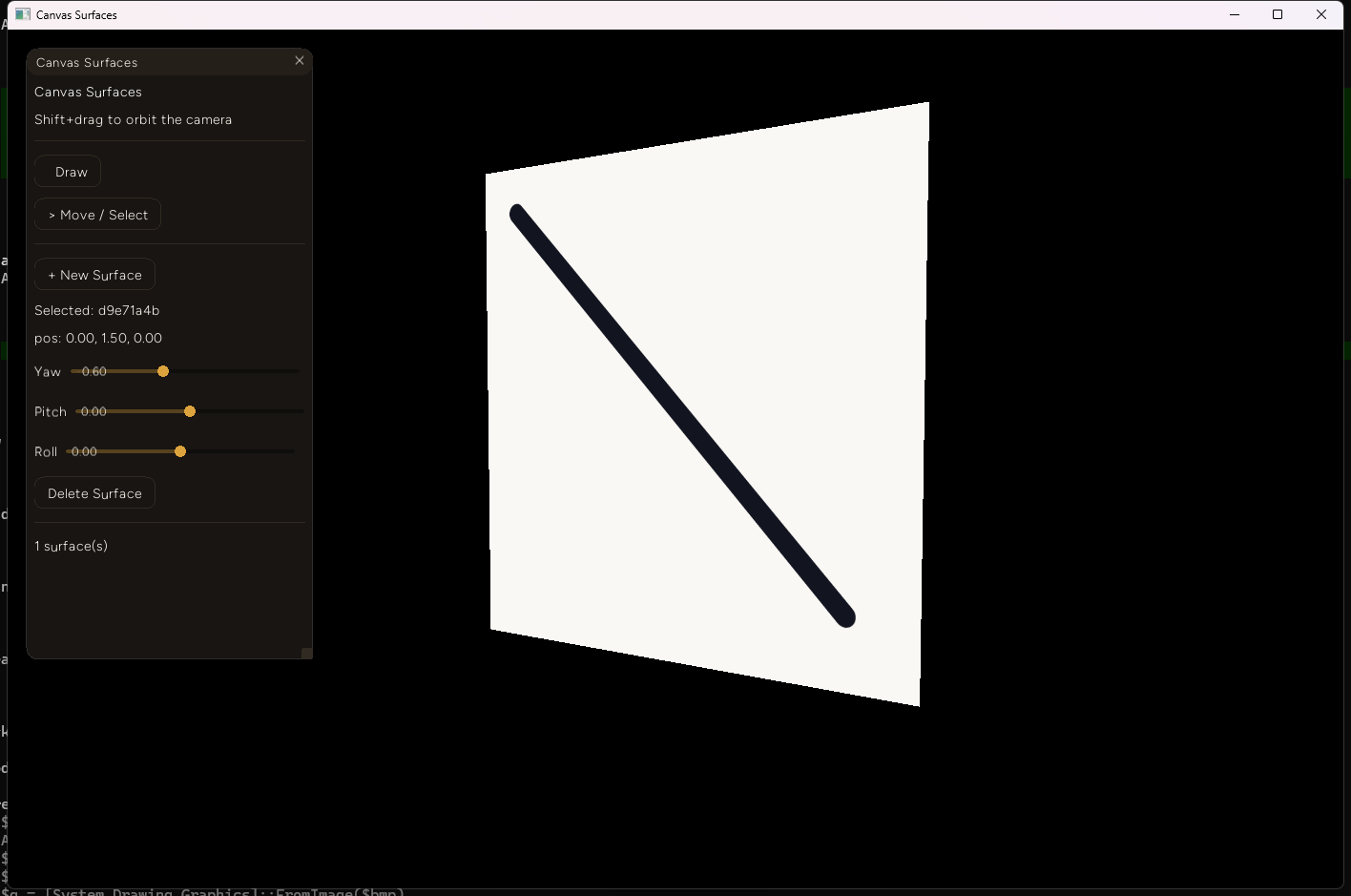

The same surface after setting yaw to -0.60 via the rotation slider - perspective-correct foreshortening, and the stroke stays exactly where it was drawn relative to the surface, not the world:

The same surface now rendered as a trapezoid in perspective after rotating it, with the diagonal ink stroke still perfectly attached to the surface's own geometry

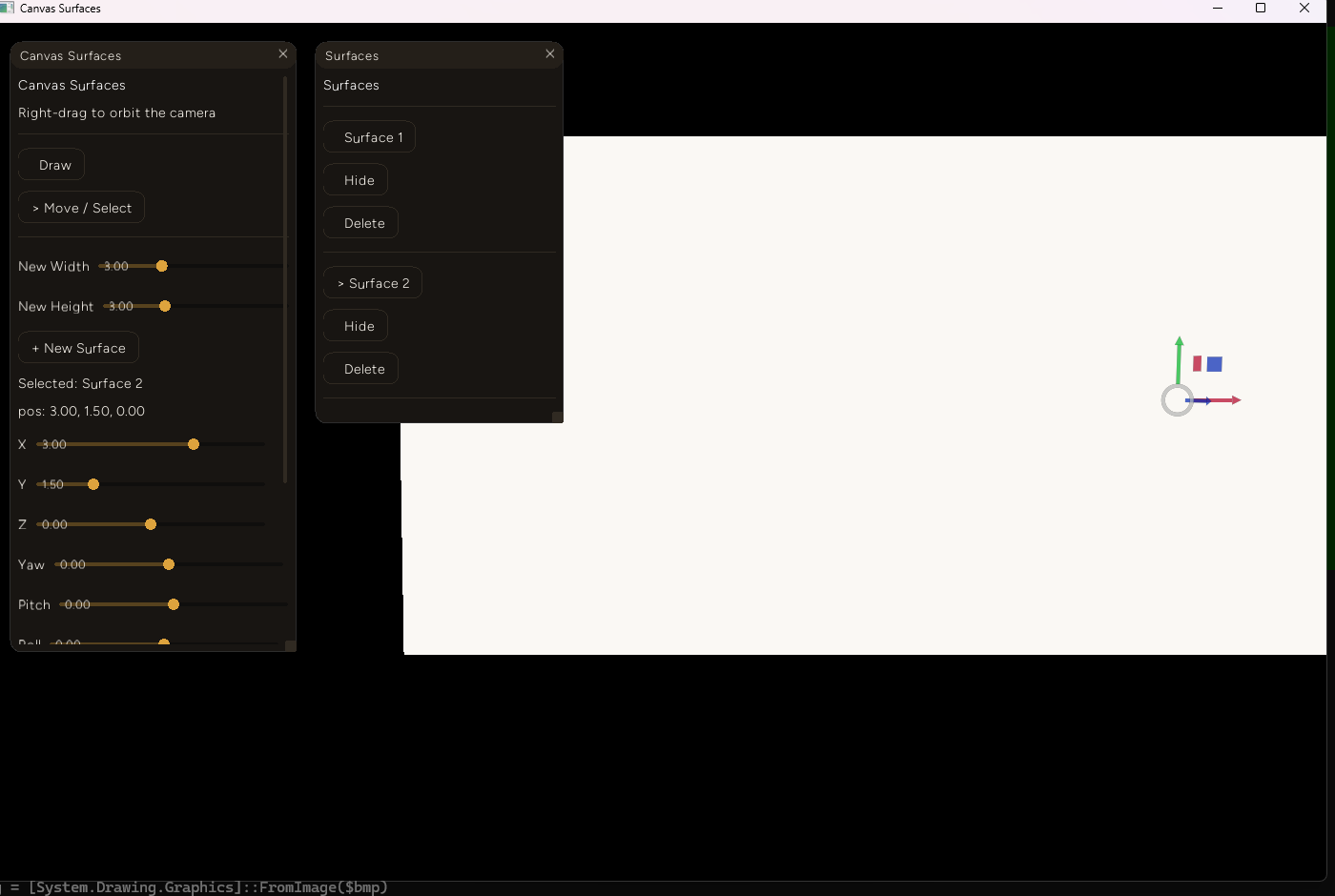

Two default-sized surfaces, the second dragged toward the first via its X-position slider - the position snapped to exactly 3.00, the true touching distance for two 1.5-half-width surfaces, and the pair reads as one seamless panel:

Two canvas surfaces joined edge-to-edge into what looks like a single continuous white panel, with a translate gizmo sitting at the shared seam and the position readout showing X: 3.00

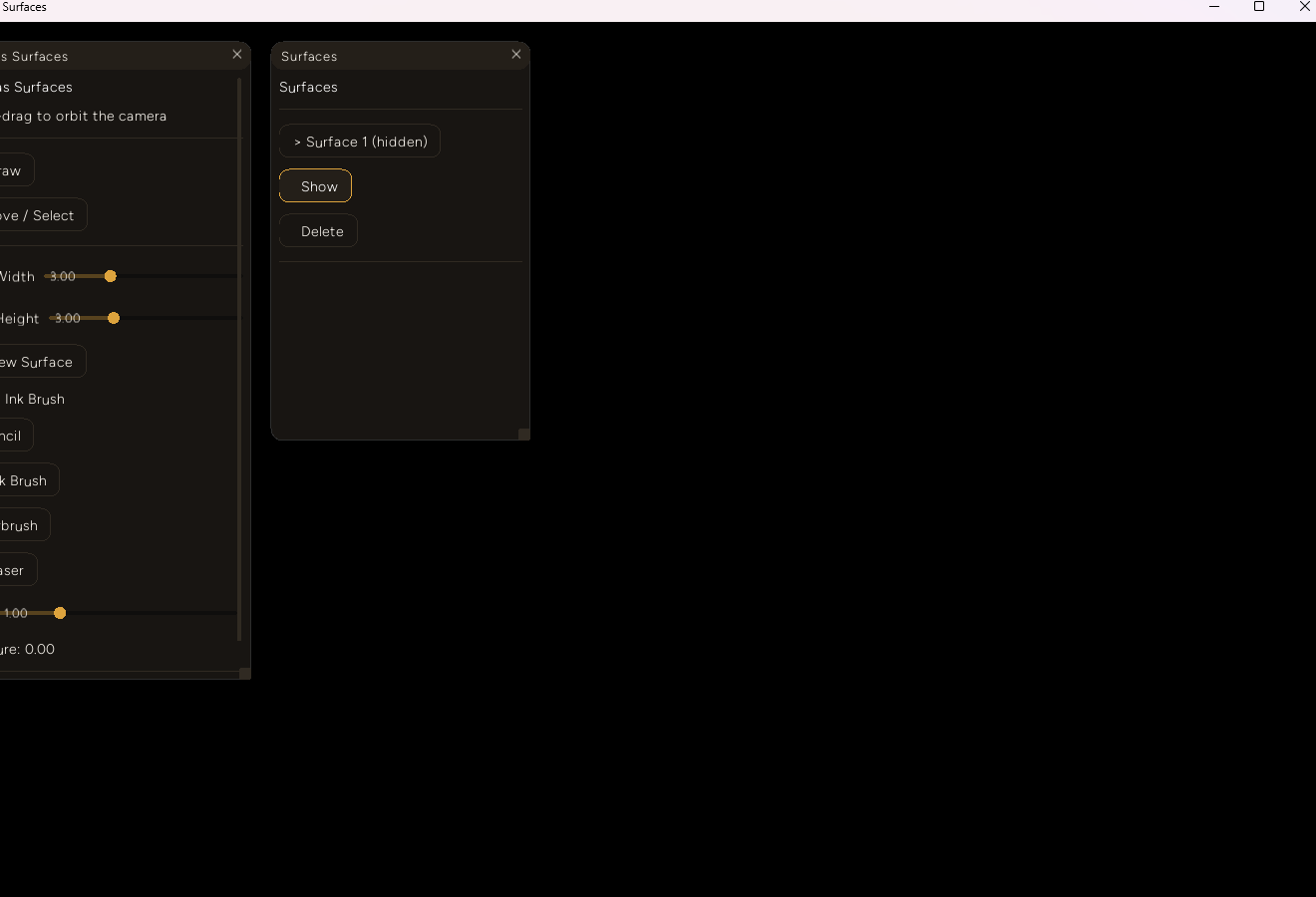

The Surfaces panel's Hide button removes a mesh from the 3D view entirely (confirmed here - the surface is completely gone, not just invisible-but-present):

The Surfaces panel showing "Surface 1 (hidden)" and a Show button, with the 3D viewport behind it completely empty where the surface used to be

And Show brings back the identical mesh at the same transform:

The same panel after clicking Show, with the white canvas surface visible again in the viewport at its original position

Decision log

A textured quad, not vector strokes. Storing strokes as a raster texture rather than a list of world-space stroke geometry is what makes moving, rotating, resizing, and (eventually) bending a drawn-on surface a pure vertex-position operation - the texture never needs to be touched or reprojected for any of those. The tradeoff, accepted explicitly: resizing a surface stretches its texture's existing UV mapping rather than resampling it, so an aggressive aspect-ratio change will visibly distort whatever's already drawn.
AABB snapping, not true rotated-edge snapping. A full rotated-OBB edge-matching solver is real work with a narrow payoff for the common case this feature actually targets - tiling flat panels into a wall or floor, where they're rarely tilted relative to each other. AABB snapping is exact there and merely approximate once a surface is rotated, which is stated in the code rather than silently accepted as correct.
Hide/show via clear-and-recreate, not a new engine visibility flag. Adding a real visibility toggle to Entropy.Model's plain-mesh path would be the more general fix, but it's an engine change for a feature this addon can already get for free by reusing createMesh/clearMesh, which both already exist and are already proven elsewhere in this codebase.
Right-click orbit over remapping any of this addon's own drawing/gizmo input. Entropy.Controls.enable's button/trigger options already supported this exact request; changing them costs one line, versus reworking which mouse button drives drawing or the gizmo.

Failure notes

The gizmo genuinely didn't render or respond at first, for an unrelated and simpler reason: game_mode defaults to true (src/app.rs), and the gizmo's draw pass is gated on !game_mode. game_composer_addon.ts already knew to call Entropy.setGameMode(false), but nothing said so anywhere addon-facing. Fixed by calling it in this addon's onInit, with a comment explaining why - a one-line fix, unrelated to the coalescing investigation above, and worth not conflating with it.
Entropy.Selection.raycast is declared but not implemented - addon_setup.js's own version is a stub returning null, confirmed by reading it before this addon's own ray-plane math was written instead of built on it. Anything reaching for it in this codebase today is reaching for a function that silently does nothing.

What's next

Bend/curve a surface after drawing on it. Needs a real subdivided grid instead of the current single quad, and a real per-triangle ray-mesh intersection to replace the flat-plane assumption raycastSurfaces currently makes - fine for flat surfaces, wrong the moment one is bent.
Group strokes/surfaces, including nested groups. No native parent/child transform system exists for addon-spawned meshes in this engine; the plan, consistent with how CC Manager and the ML Graph Trainer already build structured tools on flat primitives, is an addon-owned hierarchy that recomputes and applies a delta to every leaf surface's own transform.
Real rotated-edge snapping, if tilted-surface tiling turns out to matter in practice - AABB snapping is a deliberate v1 simplification, not a ceiling.
Everything here is Windows-only, like the rest of this input-heavy corner of the series - untested on any other platform.
