Canvas Surfaces, Part 3: One Raycast for Planes, Boxes, Cylinders, and Spheres

DATE
2026-09-15
SERIES
Entropy
View on GitHub
alexthegoodman/entropy-engine
BUILD SPEC
UNCHANGED
  • wgpu = "27.0.1"
  • winit = "0.30.12"
  • transform-gizmo = "0.8.0"
  • deno_core = "0.332.0"
EDITION
2024
OS
Windows 11 Pro 10.0.26200 (only platform currently tested)
TOOLING
  • deno 2.6.7 CLI (bundles the addon's TypeScript to JS; not a Cargo dependency)

Every Canvas Surface so far has been a flat rectangle, bent or not. Part 2 closed the bend/raycast gap the epic's own backlog named, but it left the shape itself alone - a page, still. This post adds three more: box, cylinder, sphere. The interesting part isn't any one shape's geometry, which is textbook - it's that all four kinds (plane included) now share exactly one mesh-building path, one raycast, and one AABB implementation, with no per-shape branch anywhere except "which patches does this kind produce."

What we're building

Same demo, same repo location: examples/studio-bundle/src/apps/canvas_surface_addon.ts, cargo run --bin example -- canvas-surface-demo.

The abstraction: a Patch is just a grid, wherever it bends

Part 2's plane was a row/col grid of local-space points plus a matching grid of UVs. Nothing about that idea is plane-specific - a Patch interface says so directly:

interface Patch {
    rows: number;
    cols: number;
    localPoint(row: number, col: number): Vec3;
    outwardAt(row: number, col: number): Vec3;
    uvAt(row: number, col: number): { u: number; v: number };
}

A shape is just one or more of these. A plane and a sphere are one patch each; a box is 6 face patches; a cylinder is a side patch plus two cap patches:

function shapePatches(s: Surface): Patch[] {
    switch (s.kind) {
        case "plane": return [planePatch(s)];
        case "box": return boxPatches(s);
        case "cylinder": return cylinderPatches(s);
        case "sphere": return [spherePatch(s)];
    }
}

The cylinder's side patch is a good example of how little actually changes per shape - it's the same row/col grid shape as a plane, just with a different localPoint:

const side: Patch = {
    rows: H + 1, cols: R + 1,
    localPoint: (row, col) => {
        const y = hh - (2 * hh * row) / H;
        const angle = (col / R) * Math.PI * 2;
        return [radius * Math.cos(angle), y, radius * Math.sin(angle)];
    },
    outwardAt: (_row, col) => {
        const angle = (col / R) * Math.PI * 2;
        return [Math.cos(angle), 0, Math.sin(angle)];
    },
    uvAt: (row, col) => ({ u: col / R, v: (row / H) * CYL_SIDE_V_FRACTION }),
};

The circumference seam (angle wrapping from 2π back to 0) isn't a modular-index special case anywhere in the triangulation code - it's just a duplicated column of vertices at the same world position with a different U (0 vs 1), the standard mesh-generation trick. That's what keeps every patch, cylinder and sphere included, a plain non-wrapping grid: mesh-building and raycasting never need to know a shape wraps at all.

Winding, derived once, not hand-derived six times

Getting a plane's triangle winding right (which diagonal makes the two triangles face the intended direction) took real by-hand cross-product algebra in Part 2 and again for the ground-reference grid. Doing that by hand for 6 box faces plus a cylinder's side and 2 caps is exactly the kind of repeated, error-prone work worth automating instead:

function patchWinding(patch: Patch): [number, number, number, number, number, number] {
    const row = Math.min(1, patch.rows - 2);
    const col = Math.min(1, patch.cols - 2);
    const p00 = patch.localPoint(row, col);
    const p01 = patch.localPoint(row, col + 1);
    const p11 = patch.localPoint(row + 1, col + 1);
    const outward = patch.outwardAt(row, col);
    const nCandidate = crossV(subV(p11, p00), subV(p01, p00));
    return dotV(nCandidate, outward) >= 0
        ? [0, 3, 1, 0, 2, 3]
        : [0, 1, 3, 0, 3, 2];
}

Every patch just declares its own outwardAt (a box face's constant normal, a cylinder's radial direction, a sphere's radial direction), and this picks the correct diagonal automatically at one representative interior cell - never row/col 0, which is degenerate at a sphere's pole or a cap's center point. It's safe to test only once and reuse for the whole patch because every patch here has a globally consistent row/col orientation, and because both rotation and this addon's bend are orientation-preserving, so a winding computed in local, undeformed space stays correct once a surface is rotated or (for a plane) bent.

Painting and raycasting don't know shapes exist

raycastSurfaceMesh - the function stylus and mouse input both go through to turn a screen point into a canvas pixel - iterates a surface's cached world-space patches and asks each patch for its own winding instead of assuming one:

function raycastSurfaceMesh(s: Surface, origin: Vec3, dir: Vec3): SurfaceHit | null {
    let best: { t: number; u: number; v: number } | null = null;
    for (const patch of s.worldPatches) {
        const [i0, i1, i2, i3, i4, i5] = patch.winding;
        for (let row = 0; row < patch.rows - 1; row++) {
            for (let col = 0; col < patch.cols - 1; col++) {
                const cornerV = [patch.verts[row][col], patch.verts[row][col + 1], patch.verts[row + 1][col], patch.verts[row + 1][col + 1]];
                const cornerUV = [patch.uv[row][col], patch.uv[row][col + 1], patch.uv[row + 1][col], patch.uv[row + 1][col + 1]];
                // ... Moller-Trumbore against cornerV[i0..i2] and cornerV[i3..i5], same as Part 2
            }
        }
    }
    // ...
}

Nothing here says "plane" or "box." A box's 6 faces just mean this loop runs over 6 patches instead of 1 - 3072 triangle tests total at this demo's grid resolution, still comfortably sub-millisecond with no bounding-volume pre-check, the same "deliberately simple, cheap enough at this scale" call Part 2 made for the plane.

surfaceAABB (what edge/center snapping compares) got simpler, not more complex, from supporting four shapes: instead of a plane's 4 special-cased corners, it just scans every cached vertex across every patch:

function surfaceAABB(s: Surface): AABB {
    const min: Vec3 = [Infinity, Infinity, Infinity];
    const max: Vec3 = [-Infinity, -Infinity, -Infinity];
    for (const patch of s.worldPatches) {
        for (const row of patch.verts) {
            for (const p of row) {
                for (let axis = 0; axis < 3; axis++) {
                    min[axis] = Math.min(min[axis], p[axis]);
                    max[axis] = Math.max(max[axis], p[axis]);
                }
            }
        }
    }
    return { min, max };
}

A box or cylinder doesn't have a small fixed corner set the way a flat quad does, so this is the one implementation that just works for all four kinds - worldCorner and the old CORNERS constant are gone entirely.

One texture, four atlases

Every shape still gets exactly one Entropy.Texture.create canvas - the per-surface machinery (one buffer, one textureId, one dirty flag) from Part 1 never had to change. What changed is how a patch's UV maps into that texture. A plane and a sphere use the whole 0..1 square (a sphere with a standard equirectangular wrap). A box packs its 6 faces into a 3x2 grid of cells:

const BOX_ATLAS_COLS = 3, BOX_ATLAS_ROWS = 2;
// ...
uvAt: (row, col) => ({ u: face.cellCol * cellW + (col / N) * cellW, v: face.cellRow * cellH + (row / N) * cellH }),

A cylinder gives its side the top 66% of the texture (so a label wraps naturally around the circumference) and splits the bottom third between the two caps, each mapped from its own polar coordinate into a small circular region of the atlas.

Evidence

Same machine as recent Entropy posts: 12th Gen Intel Core i5-12500, Windows 11 Pro 10.0.26200. rustc 1.94.1, cargo 1.94.1, deno 2.6.7.

cd examples/studio-bundle && npm run build-canvas-surfaces   # deno bundle -> dist/canvas_surfaces.js
cargo build --bin example
cargo run --bin example -- canvas-surface-demo

cargo build --bin example clean (no Rust changed this session). npm run build-canvas-surfaces (deno bundle) clean. tsc --noEmit reports no new errors in canvas_surface_addon.ts.

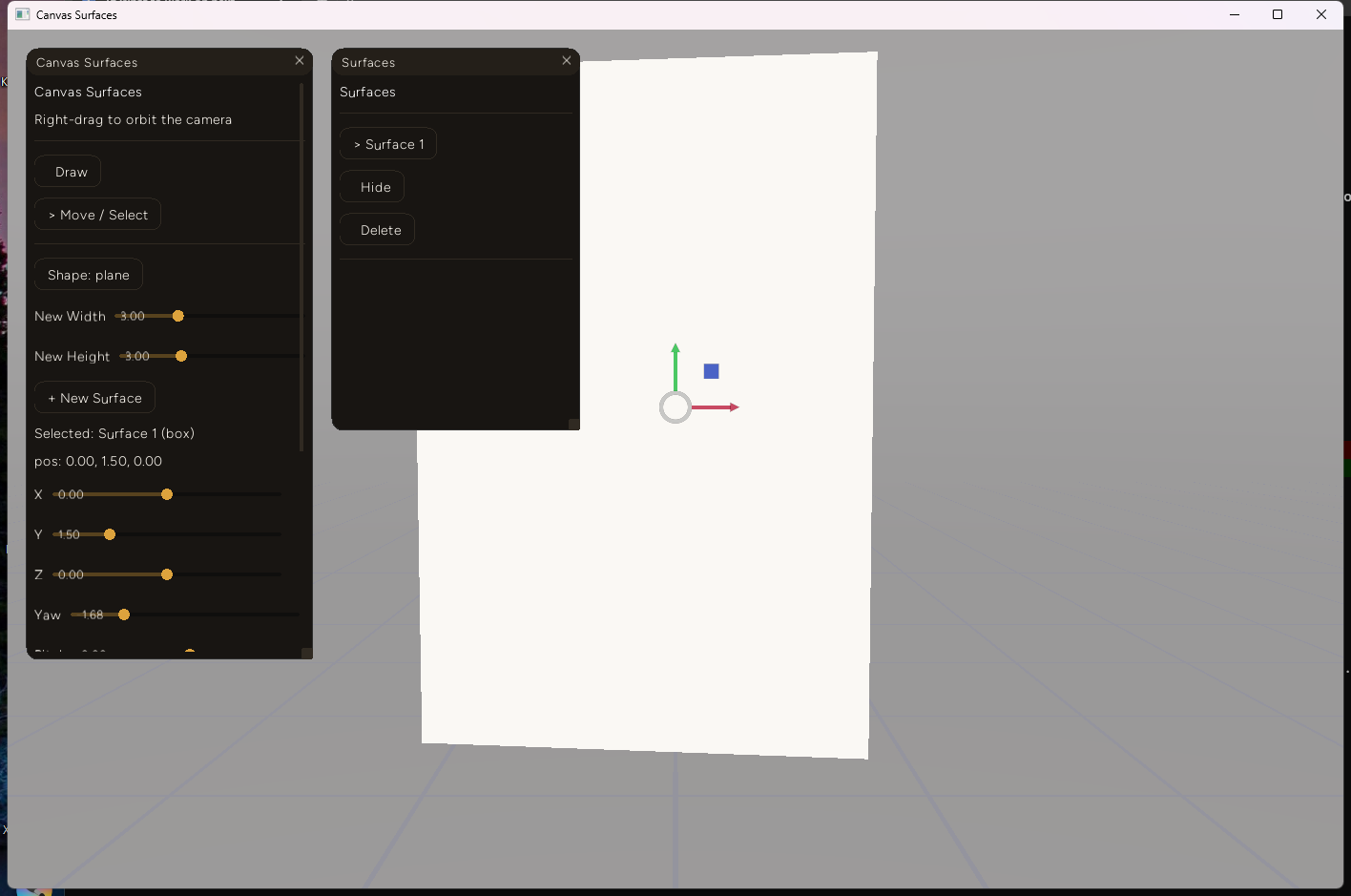

A box, rotated via its Yaw slider - the diagonal cut at bottom-left and the slanted top edge are the front face meeting a receding side face, not a flat card:

A white box surface rotated to show a real 3D corner, with a diagonal edge where the front face meets a receding side face
A white box surface rotated to show a real 3D corner, with a diagonal edge where the front face meets a receding side face

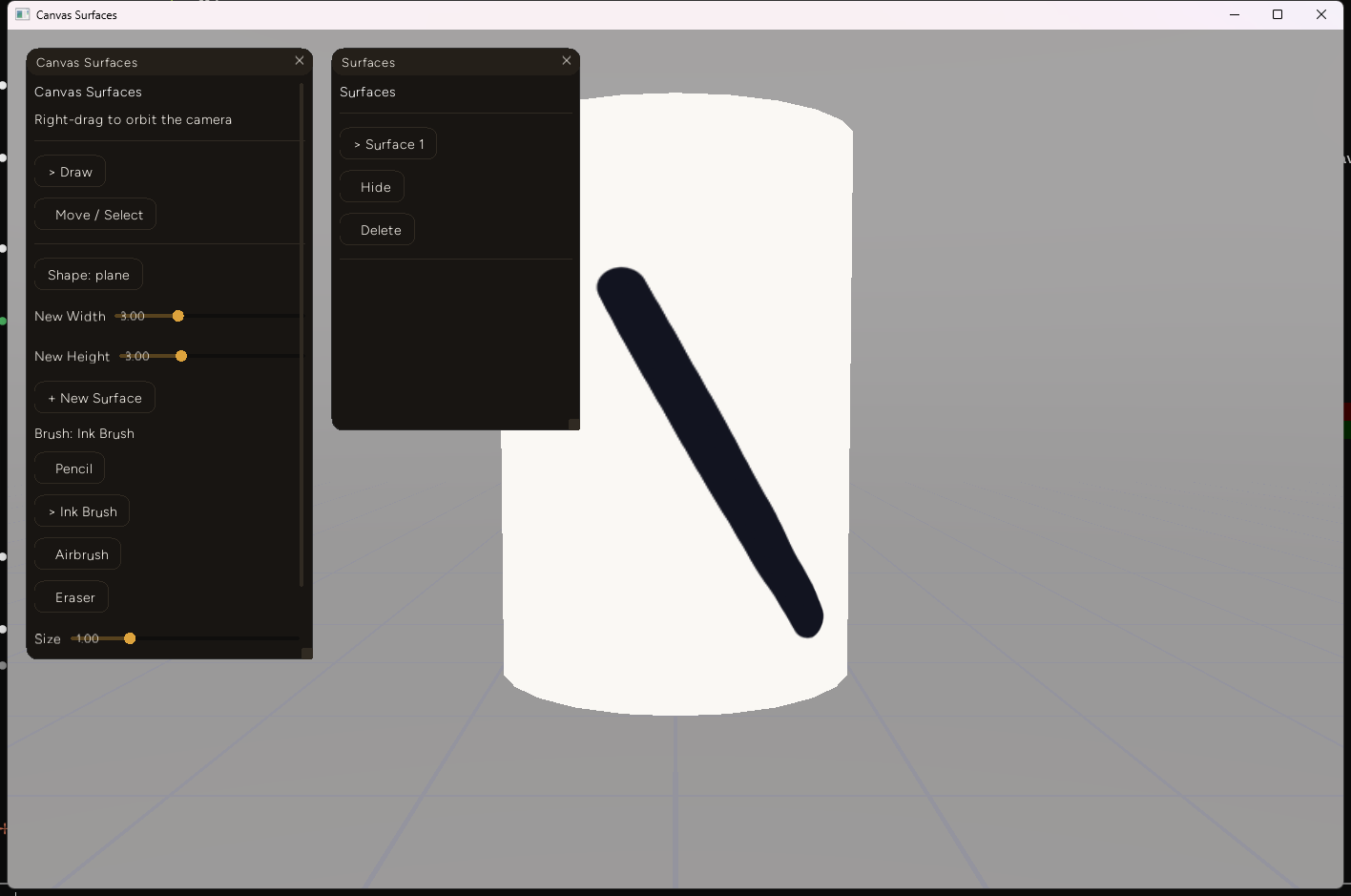

A diagonal ink stroke drawn with a synthetic mouse drag directly on a cylinder's curved side - continuous and undistorted, confirming the raycast tracks correctly across curved geometry:

A dark diagonal ink stroke drawn cleanly across the curved side of a white cylinder
A dark diagonal ink stroke drawn cleanly across the curved side of a white cylinder

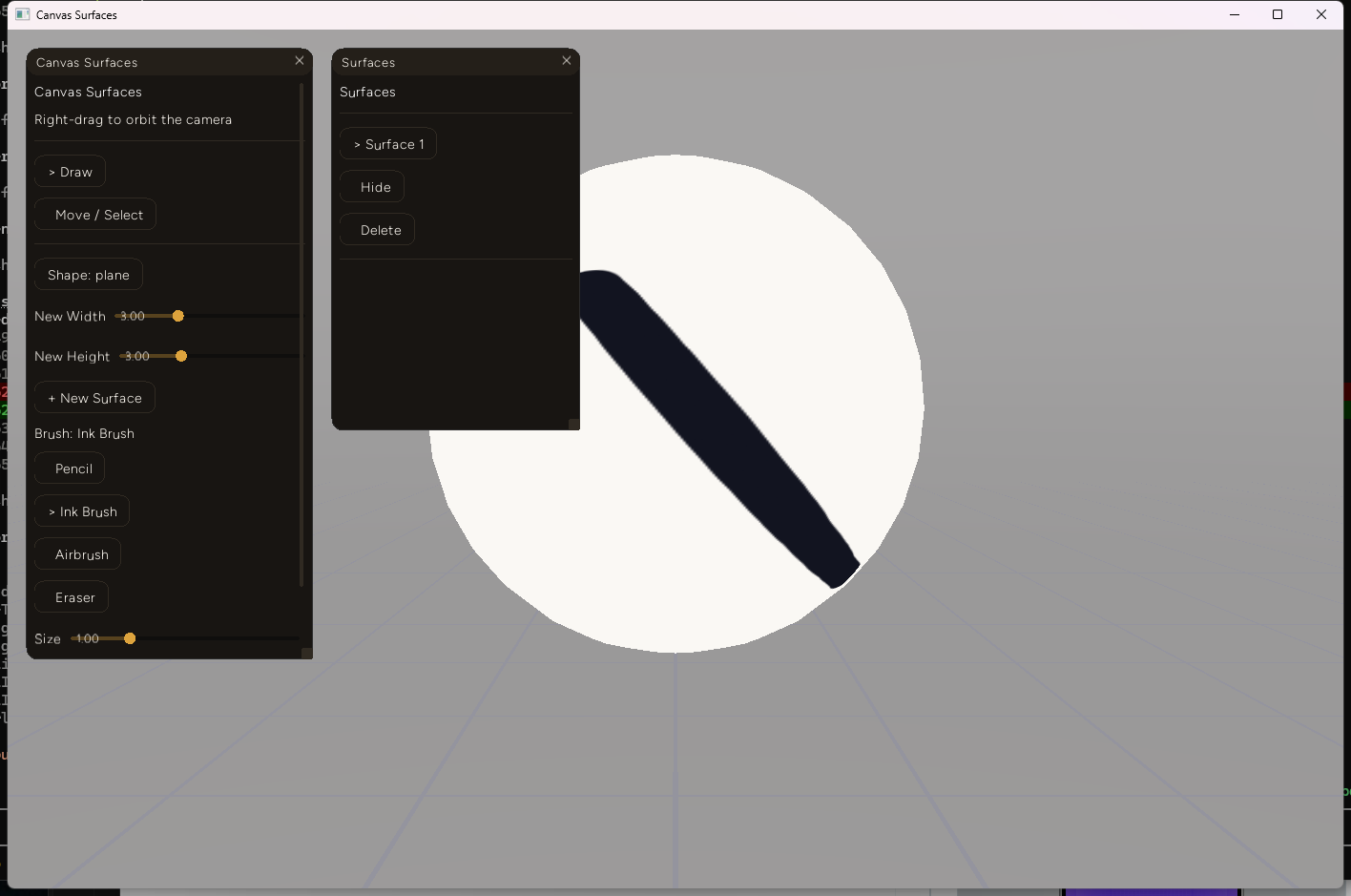

The same test on a sphere:

A dark diagonal ink stroke drawn across the front of a white sphere, following its curvature
A dark diagonal ink stroke drawn across the front of a white sphere, following its curvature

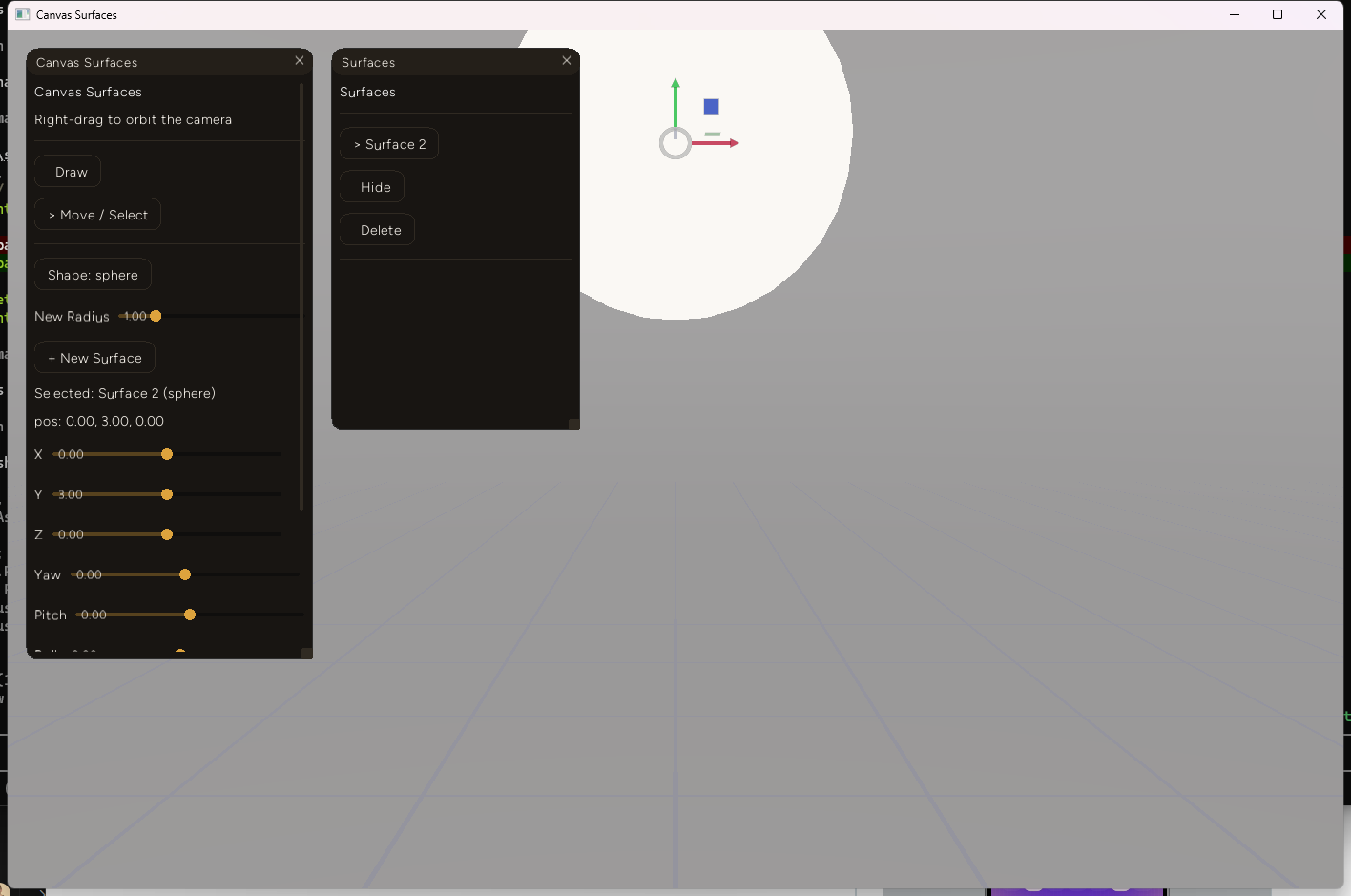

The full production path, not a direct function call: Shape cycled to "sphere" via its button, spawned with "+ New Surface," selected, and repositioned with the ordinary X/Y/Z sliders - gizmo attached and everything:

The Canvas Surfaces panel showing Shape: sphere selected, a spawned sphere surface, and its position sliders and translate gizmo in the 3D view
The Canvas Surfaces panel showing Shape: sphere selected, a spawned sphere surface, and its position sliders and translate gizmo in the 3D view

Decision log

Failure notes

What's next
