Hosting Real VST3 Plugins in Entropy's DAW: Vital, Massive, and Maschine 3

The last DAW post gave every track a persistent mixing bus with live gain, mute, solo, and a delay/reverb chain. Every sound on those buses still came from the same place: a handful of fundsp oscillators and drum voices baked into the engine. This post replaces that on a per-track basis with real VST3 plugins. A track can now be Vital, Massive, or Maschine 3, play through its own bus like any built-in voice, open the plugin's own editor window, and come back with the same patch after a restart.

What we're building

• src/audio/vst3.rs (new) - scanning, loading, a Vst3Source that is a rodio::Source pulling blocks out of a plugin, MIDI note-on/note-off, state save and restore, editor window control, parameters.
• src/audio/vst3_capture.rs (new) - screenshots of a plugin's native editor window, because the engine's own screenshot path reads back the composited wgpu frame and a plugin editor is a separate Win32 window that never appears in it.
• Entropy.Vst3 (new, src/deno/vst3_ops.rs) - scan, load, noteOn, openEditor, pollState, setParameter, and friends, typed in addon.d.ts.
• The DAW addon: an Instrument panel per track, notes routed to the plugin instead of the built-in voice, drum rows mapped to General MIDI notes, project save and restore, and two chat tools (daw_list_vst3_plugins, daw_set_track_instrument).
• Two BDD tiers: a headless one that renders real audio from the installed plugins, and a live one that drives the real DAW binary twice and screenshots the plugin editors.

Not in this post: Jam Origin's MIDI Guitar 3. It is on this machine, the scan sees it, and it is deliberately not hosted yet. It is an audio effect that emits MIDI, which needs an audio input stream and MIDI routing between tracks that instruments do not.

The work

Choosing what to build on

Three options showed up on crates.io. vst3 0.3.0 is raw generated bindings for the whole API: writing the loader, the host application object, the event lists, the parameter-change queues, the plug frame, and the component handler myself. rack 0.4.8 hosts VST3 and Audio Units, but its package excludes rack-sys/external/vst3sdk/ and it has a native rack-sys component with a build script; I did not try it. vst3-host 0.9.0 is pure Rust on top of vst3, roughly 28,000 lines including all of the above, plus a Win32 editor window.

I ran a short probe before committing to it. It loaded Vital and Massive and produced real audio (peaks 0.357 and 0.247 for a middle C), which settled it. Its README also says "Windows/Linux window code compiles but isn't yet runtime-verified", which turned out to be worth taking seriously. See the failure notes.

Three threads, each with one job

A plugin is not one object you can pass around. Loading Maschine 3 on a worker thread and then calling into it from the main thread died with STATUS_ACCESS_VIOLATION (0xc0000005) in the probe. Loaded and used on one thread, the same code was fine. So the design pins things:

• Main thread: load, unload, editor window, state, parameters. The registry of loaded instruments is a thread_local! in audio::vst3, not a global, so the affinity is in the type of storage rather than a comment.
• Audio thread: Vst3Source::next renders one 512-frame block at a time. It only ever try_locks.
• Shared: a small struct of atomics and one command queue.

The plugin sits in an Arc<Mutex<Plugin>> because vst3-host's PluginWindow needs exactly that. The audio side treats the lock as a hint, not a right:

// src/audio/vst3.rs
let plugin = self.plugin.as_ref().expect("source used after release");
let Ok(mut p) = plugin.try_lock() else {
    self.carry = cmds;
    self.out.iter_mut().for_each(|s| *s = 0.0);
    self.shared.skipped_blocks.fetch_add(1, Ordering::Relaxed);
    return;
};

If the main thread holds the lock (opening a big editor can take a few hundred milliseconds), that block is silence and the pending note commands carry over to the next block. The audio thread never waits.

The source is added to the track's existing TrackBus mixer through a new AudioEngine::add_track_source. That is the whole integration with the mixing bus from the last post: gain, mute, solo, and the delay/reverb chain apply to a plugin with no extra code, because the plugin is just another source in that track's rodio::mixer::Mixer. A Vst3Source never reports itself finished, so it also avoids the empty-mixer wrinkle that post described.

Notes

The DAW's sequencer fires Vst3.noteOn(trackId, { note, velocity, duration }). The note-on is queued and applied at offset 0 of the next block. The note-off is different: the duration is converted to frames, counted down in the audio thread, and sent at its exact sample offset inside the block where it falls due, sorted, since the VST3 event list is expected in ascending sampleOffset order.

Synth tracks send the row's pitch. Drum tracks send a General MIDI drum map (Kick 36, Snare 38, Hihat 42, Clap 39, Tom 45), which is also where Maschine's pads start by default.

Tearing down on the right thread

Unloading has an ordering problem. The main thread holds one Arc to the plugin and the audio thread holds another (inside the source). Whoever drops last runs the plugin's teardown, and it must not be the audio thread.

// src/audio/vst3.rs
impl Drop for Vst3Source {
    fn drop(&mut self) {
        self.plugin.take();
        self.shared.source_released.store(true, Ordering::Release);
    }
}

Vst3Instrument::unload clears alive, waits up to 750 ms for source_released, then drops its own Arc on the main thread. If the audio thread never lets go, it leaks the plugin and says so, on the reasoning that a leak is survivable and a teardown crash is not. unload_all runs from winit's exiting hook so nothing is left to a thread-local destructor at process exit.

The editor, and getting its pixels

vst3-host's PluginWindow creates a top-level Win32 window and attaches the plugin's IPlugView to it. Winit's message loop already pumps the thread, and the editors paint under it; a per-frame service_all() hook handles the deferred resize and DPI work and notices when the user closes the window.

Screenshots of it use PrintWindow(PW_RENDERFULLCONTENT) into a bitmap, saved as PNG, with a screen-copy fallback if the result has fewer than 8 distinct colours. PrintWindow was enough for all three plugins; the fallback has not been exercised.

State, so a patch survives a restart

A plugin's sound lives inside the plugin. The DAW stores the blob save_state returns, base64, on the track (track.instrument.state). It is captured when the editor closes and after a parameter edit has been left alone for a second, and the addon collects it each frame with pollState. On load it is handed back to the plugin before processing starts.

This needed two fixes to the DAW that had nothing to do with plugins, both found by the live test below: the standalone daw example had no data directory, so Entropy.IO.save and load silently did nothing, and the addon never called IO.load at startup in the first place. It does now, clearing the saved effect ids first since they are per-session handles into the effect registry.

Evidence

Headless tier

tests/vst3_bdd.rs (harness = false, cucumber, one scenario at a time on one thread) pulls Vst3Source exactly as the audio thread would, with no audio device and no window, against the real installed plugins. tests/features/vst3_host.feature:

Scenario Outline: A plugin parameter changes what comes out
  Given I load the VST3 plugin "<plugin>"
  When I play MIDI note 60 at velocity 100 for 0.5 seconds
  And I render 1 seconds of audio
  And I remember the peak as "default"
  And I set the parameter "<parameter>" to 0.2
  And I render 0.1 seconds of audio
  And I play MIDI note 60 at velocity 100 for 0.5 seconds
  And I render 1 seconds of audio
  Then the peak is below 0.6 times the remembered peak "default"

cargo test --release --test vst3_bdd -j 2: 12 scenarios, 69 steps, all passing, three consecutive runs. It covers the scan (Vital, Massive, Maschine 3 as instruments; MIDI Guitar 3 as an effect with MIDI output), note-to-audio with a decaying tail, a parameter changing the output, a state round trip into a fresh instance, unloading while another thread is pulling audio, and speed.

Same machine and command for every row; the timings are one take(10 s of samples) on the test thread with a note held for 2 seconds. They are correctness-adjacent numbers on my hardware, not a claim about other machines. The spread across runs is within 10 percent, so no run was discarded.

Live tier

tests/vst3_live.rs launches the real example daw binary twice against a clean data folder. The first run is scripted by tests/features/vst3_live.feature through the same Gherkin-driven in-engine driver the browser and canvas suites use: scan, put Vital on the Bass track, Massive on a new synth track, Maschine on the Drums track, open each editor, play notes, run the transport for 2.5 seconds. Two new driver steps were needed: I wait N milliseconds (plugin audio is rendered by the audio thread in wall-clock time, not per app frame) and I capture the plugin editor "name".

The assertions read three independent things. First, the audio thread's own counters, which the driver writes into result.json:

Second, the project the addon persisted to DAW.json: each track holds its plugin's name and a non-trivial state blob (Vital 238,516 base64 characters, Massive 3,660, Maschine 3 91,792). Third, the screenshots. The second run starts a fresh process with the same data folder and the assertion is that all three plugins load themselves back, Vital plays again, and its editor opens.

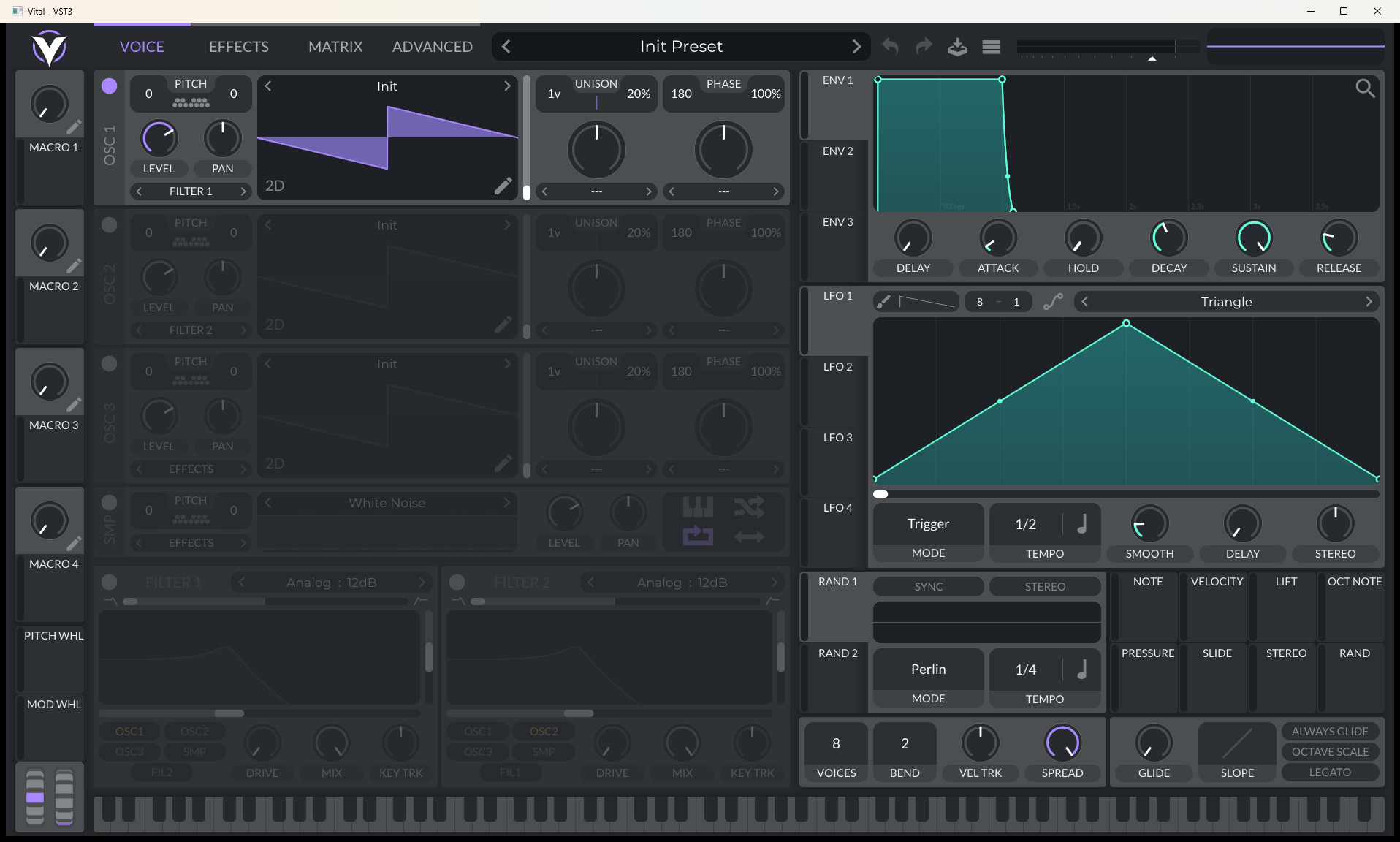

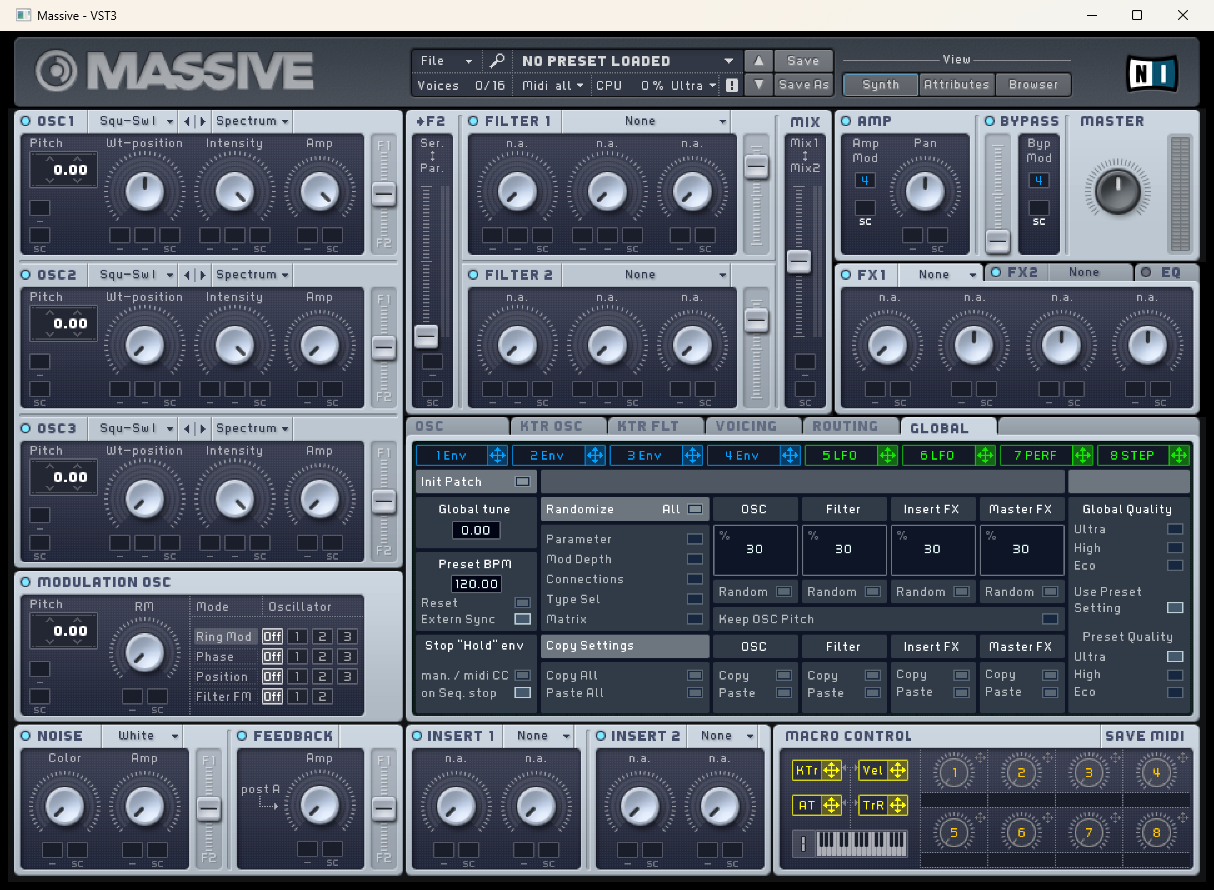

The three plugin editors, captured from their own windows:

Captured at 1916x1152 with 3,421 distinct colours.

1214x890.

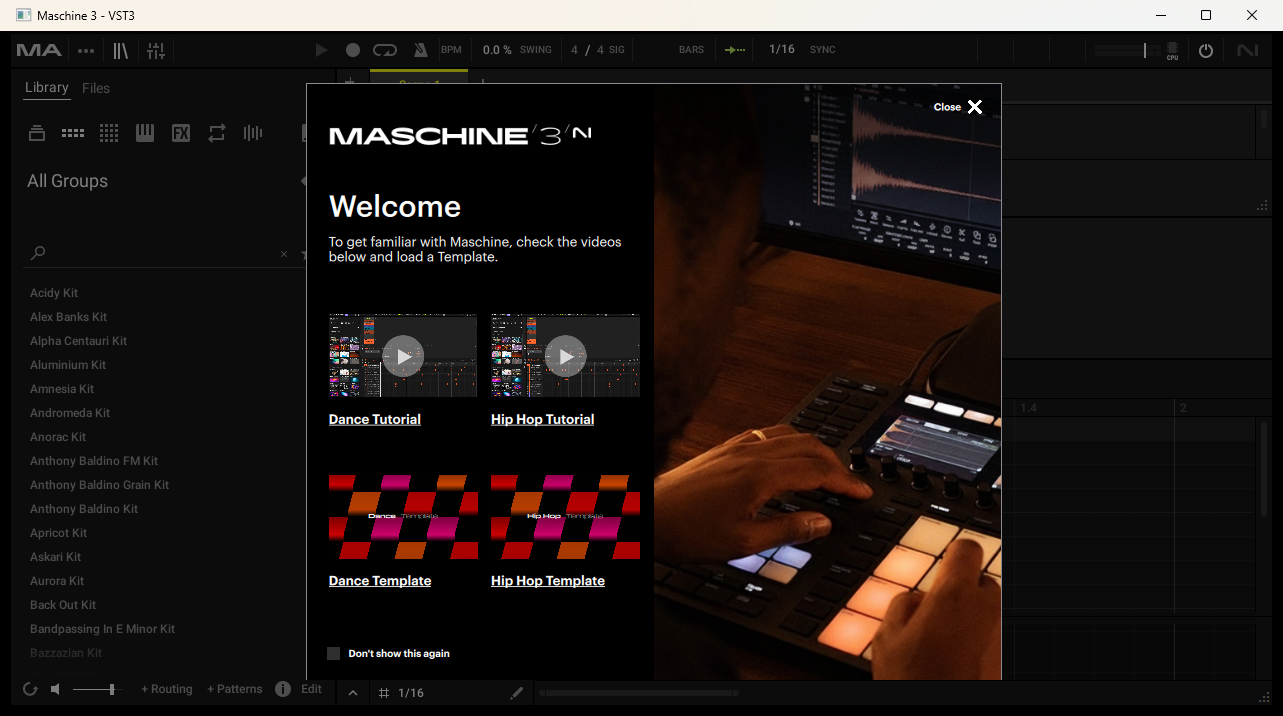

1283x716. This is a fresh Maschine instance: its first thing to show is the Welcome dialog, and the reason Maschine's peak above is 0.0 is visible behind it, a library of kits and none loaded. Getting sound out of it means choosing a kit here, which is what the saved state then carries.

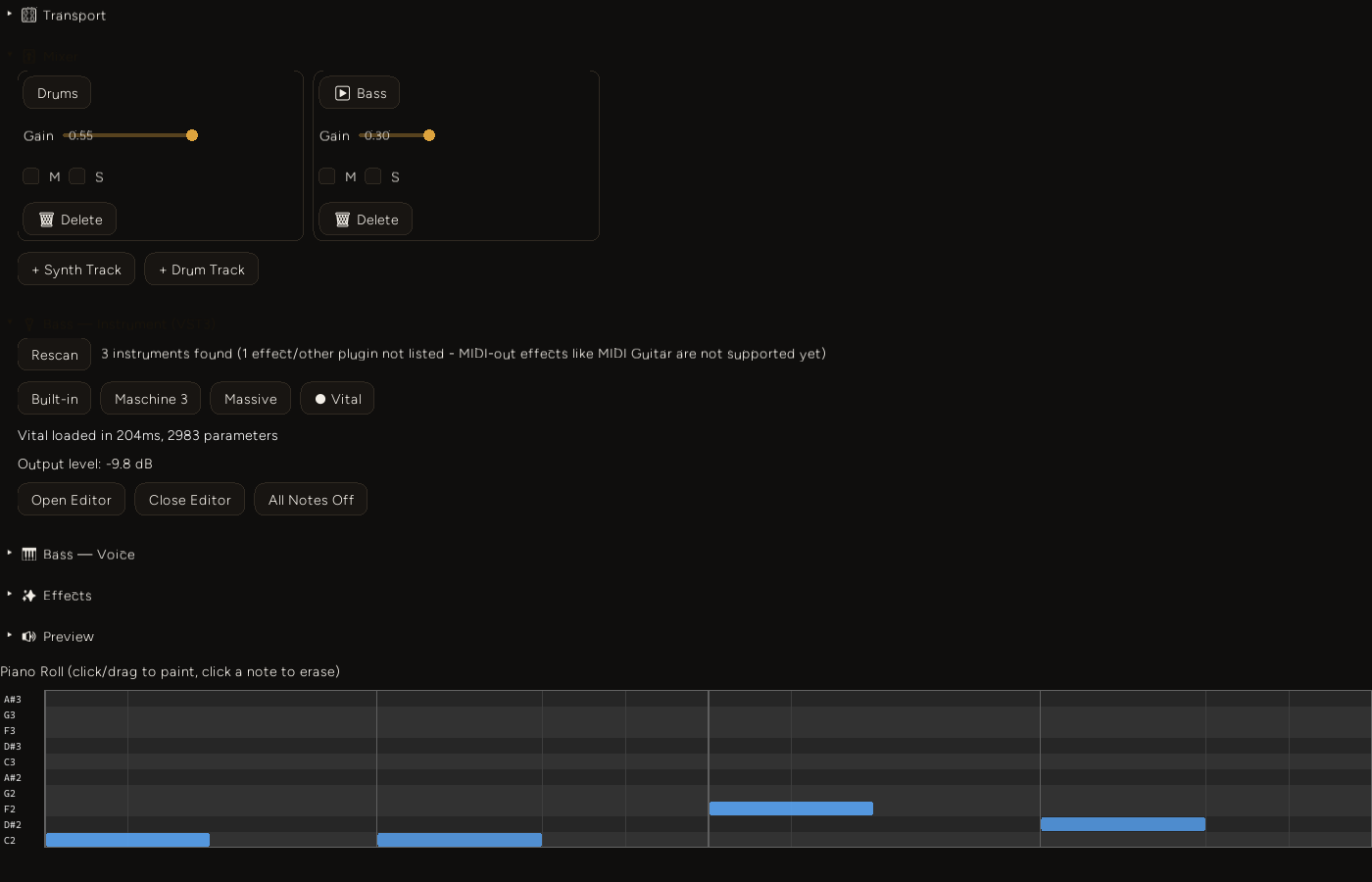

The DAW with Vital on the Bass track, mid-note. The meter is the addon reading Vst3.takePeak, and -9.8 dB is consistent with the 0.3631 lifetime peak above:

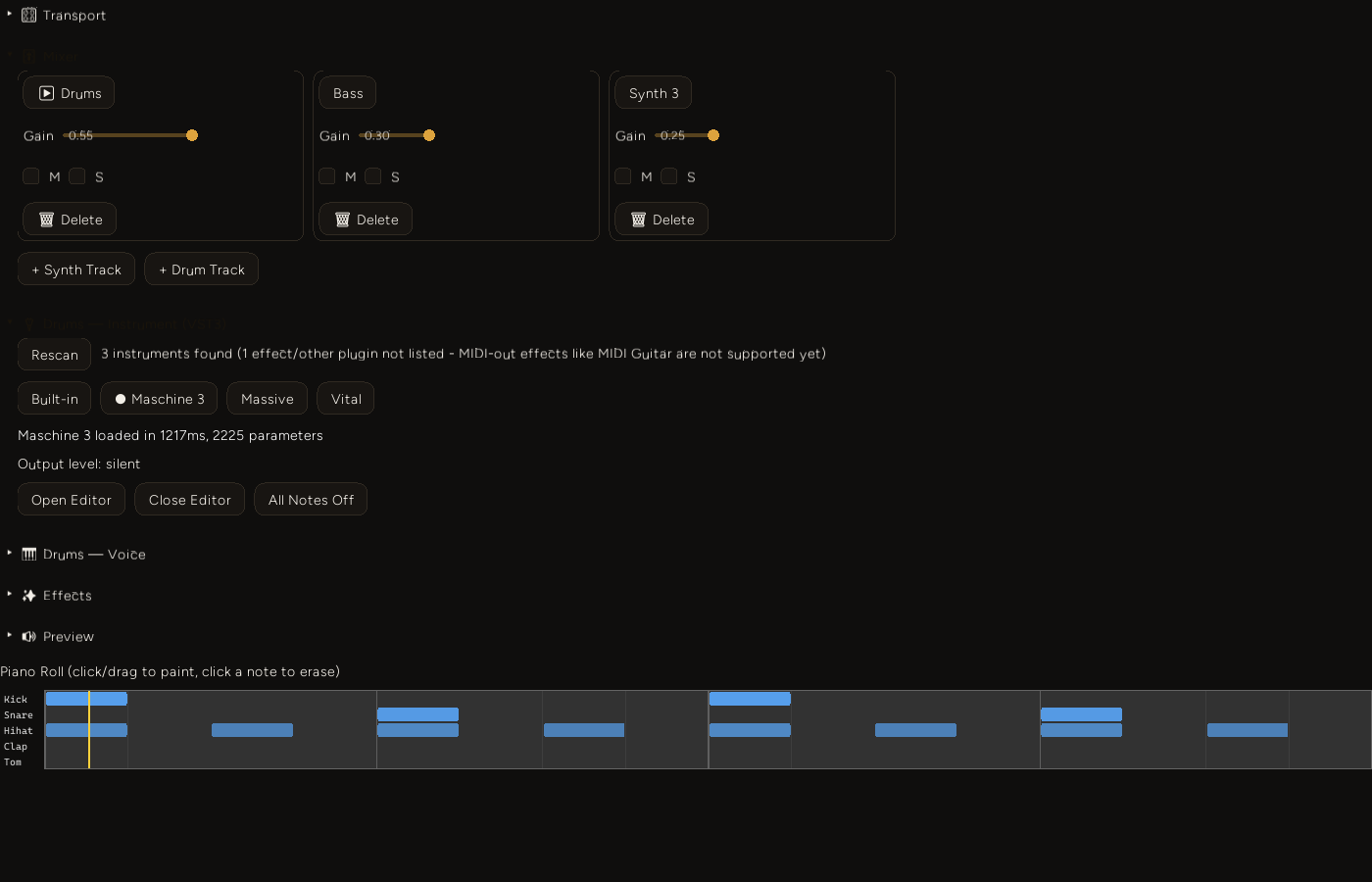

And the transport running with Maschine on the Drums track and its playhead in the piano roll, load time on the status line (1217 ms):

cargo test --release --test vst3_live -j 2 -- --nocapture: 1 test, 35.5 seconds. canvas_bdd and browser_bdd were re-run after the shared driver changed and still pass.

Decision log

vst3-host over raw bindings. The alternative was owning the whole host side of the API. vst3-host already had the pieces I would have written badly first: event lists, parameter queues, the state streams, the Win32 window with DPI handling. The cost is that Windows was the least-tested target, and it showed. I ended up vendoring it.

Arc<Mutex<Plugin>> with try_lock, not its lock-free RealtimePluginRunner. The runner takes ownership of the plugin on the audio thread and exposes MIDI, parameter, and tempo commands over a ring buffer. It does not expose the editor or state, and PluginWindow wants the shared mutex anyway. The price is that opening an editor can cost the audio thread a few silent blocks; the live run recorded 3 to 21 skipped blocks per plugin, and I have not listened to whether they are audible.

The plugin's audio is a source in the track's bus, not a separate output. This is what makes gain, mute, solo and the effect chain work for free, and it is why the plugin's lifetime is tied to a TrackBus: load fails if the track has no bus yet.

Note-off in frames on the audio side, note-on at the block boundary. Counting the hold time in rendered frames keeps note lengths exact even when the audio thread hiccups. Note-on could have used the same machinery but the sequencer still lives in the JS frame loop, so it would be exact to the block and still wrong by the frame jitter. Block-quantizing it honestly is less misleading than pretending. It is on the board.

Vendoring vst3-host instead of forking on GitHub. Two small changes, tracked in vendor/VENDORED.md, wired in with [patch.crates-io]. The point is to be able to delete the directory once upstream has an equivalent fix.

thread_local! registry. The crash above is a property of how these plugins behave, so the storage should refuse to be reached from another thread rather than rely on convention.

Failure notes

The scan found nothing. Vst3Host::discover_plugins() on this machine returned zero plugins, and scan_plugin_paths() returned an empty list, with C:\Program Files\Common Files\VST3 in its default paths. Every plugin there is a single .vst3 DLL file, not a bundle directory, and the crate's directory walk did not pick them up. I did not chase the exact line. audio::vst3::scan_plugins does its own walk (files or directories ending in .vst3, one subfolder deep) and calls get_plugin_info on each path, which works: Vital 140 ms, Massive 141 ms, Maschine 3 1.94 s, MIDI Guitar 3 86 ms.

Massive and Maschine 3 would not open their editors. The DAW's status label read editor failed to open: Failed to get view size for Massive; Maschine 3 also failed to open (I did not capture its message). vst3-host's open_editor calls getSize before attached and aborts if it errors. The IPlugView header in Steinberg's pluginterfaces describes getSize as returning "the size of the platform representation of the view", and describes attached as the call where that representation is created. So an error beforehand is defensible plugin behavior, and the host has to tolerate it. The patch keeps a default rect when the early call fails, and PluginWindow::open re-reads the size from the attached view and resizes the window. Massive attached at 1214x890, Maschine at 1283x716. That is the whole difference between two of three plugins working and all three.

Loading Maschine on another thread crashed. Described above. I did not investigate why, only that it reproduces (0xc0000005) and that loading and using it on one thread does not. The consequence is that loading blocks the frame for as long as the plugin takes: Vital 204 ms in the live run, Maschine 3 1217 ms, and MIDI Guitar 3 took 10.35 s to load in the probe. There is no loading state yet.

Massive smooths parameter changes, so ordering in the test mattered. My first version of the parameter scenario set MASTER-VOLUME to 0.2 and struck the next note in the same block. The peak barely moved (0.2403 to 0.2354) and the scenario failed. In a probe:

I expect this is the plugin's own smoothing rather than anything in the host, but I did not confirm that. The state round-trip scenario failed for a related reason: Massive read back 0.5 after a save and reload because no block had been processed between the parameter set and the save, and I expect a parameter change reaches Massive's processor only through process. Both scenarios now render 0.1 seconds after the change, which is what the running app always does anyway. Vital showed neither problem.

The DAW transport had never run in the standalone app. The live counters showed one note per plugin after 2.5 seconds of transport, all of them from the preview button. addon.onUpdate registers under the addon's own name, and the frame loop ticks whichever single name is current: "DAW" inside Studio's DAW workspace, but "Global" in a standalone EntropyApp (render_addon_frame.rs). A plain onUpdate never fires there. The keyframe-editor post found this once already. The addon now registers its tick under both names, which cannot double-fire since only one name is current on a given frame. After that, Vital received 6 notes and Maschine 15 in the same feature.

#[op2] does not like a type named Value. Returning serde_json::Value failed with Invalid return type; the macro treats a type literally named Value as a V8 value. A type Json = serde_json::Value; alias fixed it.

Linking every bin in parallel hit LNK1318 (PDB limit). cargo test --test <name> builds all of the crate's binaries, and one of them (ml_graph_bench) failed to link on the first attempt with Unexpected PDB error; LIMIT (12). Unrelated to this change; -j 2 avoids it.

Two things I saw and did not chase. Massive prints cannot resolve resource: resources_ENG and Maschine cannot resolve resource: lib_ENG to stdout when they load; audio and editors were fine. And in the screenshots, the Mixer and Instrument headers, which I pinned open with an id and defaultOpen, draw their titles almost fully faded, while the closed Transport and Effects headers are crisp. It is on the board, undiagnosed.

What is not done

• Loading blocks the frame, and the scan runs in-process, so a plugin that crashes during its own init takes the DAW with it. vst3-host has an isolated probe for this; it is not wired in.
• WAV export skips VST3 tracks and says so in the status line.
• Note-ons are block-quantized (11.6 ms at 44.1 kHz), on top of the sequencer's per-frame jitter.
• Maschine 3 is only tested as far as loading, opening, being driven, and saving state. Its BDD peak is 0.0 because nothing is loaded in it.
• Closing an editor with its own title-bar X is handled in the code (closed_by_user) but not exercised by either test tier; the tests close editors with the DAW's button. The debounced state capture after a parameter edit is likewise untested: the saved states in the live run were all captured on editor close.

What's next

MIDI Guitar 3 is the next plugin: an audio input stream into its input bus, and its output MIDI routed into another track's instrument, which needs the load time addressed first. Before that, a Maschine kit saved as a fixture so the BDD can assert real audio from a General MIDI kick, and sample-accurate scheduling so a pattern's timing is decided on the audio thread rather than in the JS frame loop.
